3D Printing & 3D Scanning>>>Computer & Office
Brand Name DFORCE
Origin CN(Origin)
Item Type Auto Self-Leveling Sensor
Model Number TL-TOUCH
Ships From
Russian Federation
China
Color
***-***
Dear customer:
If you have any questions about using the method, please refer to the link.https://drive.google.com/file/d/0B_lX6Bwizwk0RzFhTTF2dHhSems/view?usp=sharing
3D Printer Auto Leveling Sensor Auto Leveling test 1
https://youtu.be/9Kt7MLMhS4c3D Printer Touch Maintenance Video:https://youtu.be/BRodJEOhK4AAnet 3D printer tutorial:https://www.youtube.com/watch?v=6aofhlAooUEhttps://www.youtube.com/watch?v=WWDkZtWwd6ISpare parts - for just in case something happens
1 X 5Pin Straight Pin2 X Screw & Nut & Washer1 X 80CM Extension wires Officially upgraded in January 1,2019Solved the impact of tremor on the sensor during 3D printer movement.No matter how bad your 3D printer is. The sensor is still working.Upgrade notice: 3D TOUCH SENSOR will be upgraded to the latest version on January 1, 2020. The circuit board was redesigned, and the sensor's needle was changed to a transparent color.New versions of sensors may differ slightly from photos.

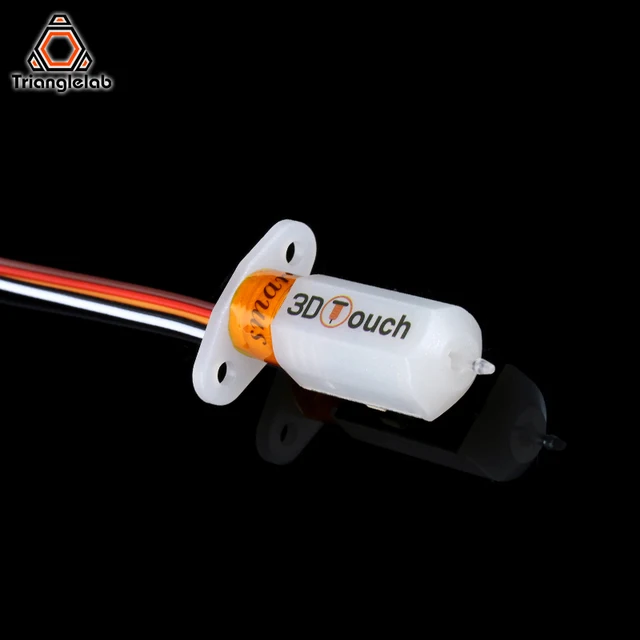

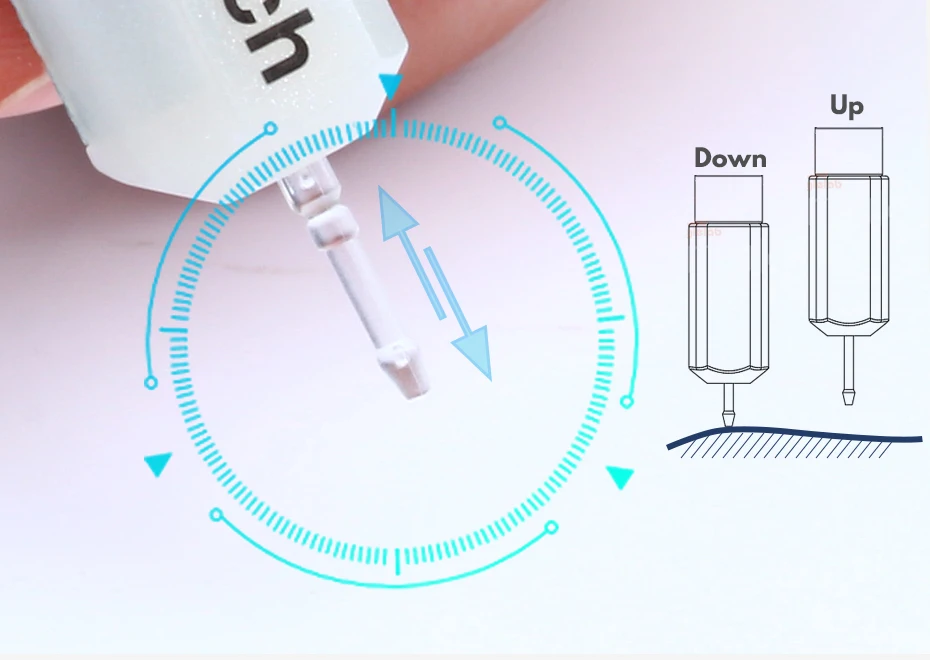

Physical leveling3D Printer TOUCH is an auto leveling sensor for 3D Printers that can precisely measure the tilt of your print surface.It can greatly improve the printing precision of your 3D Printer.

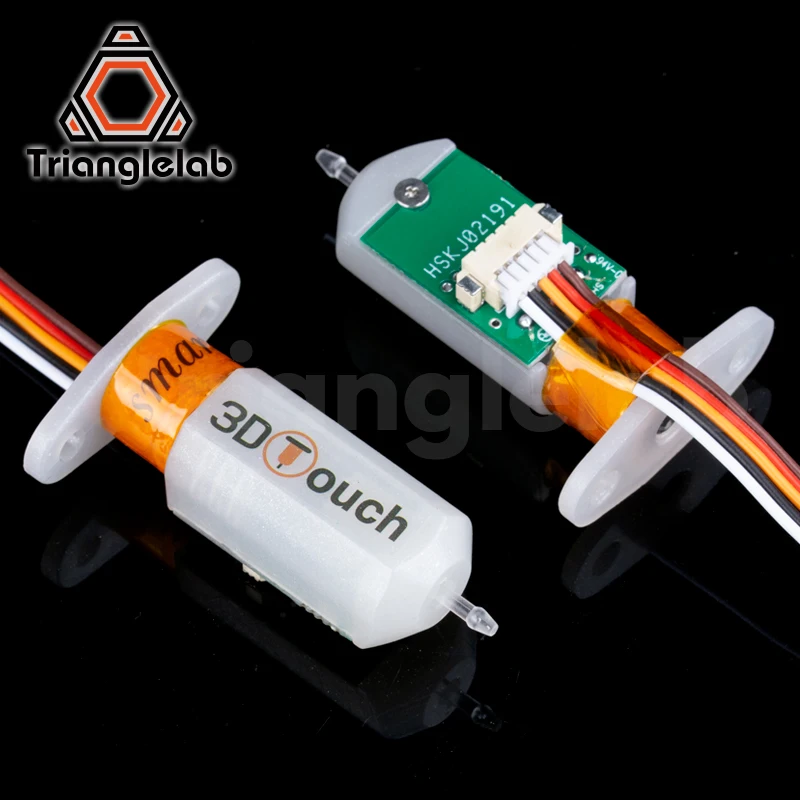

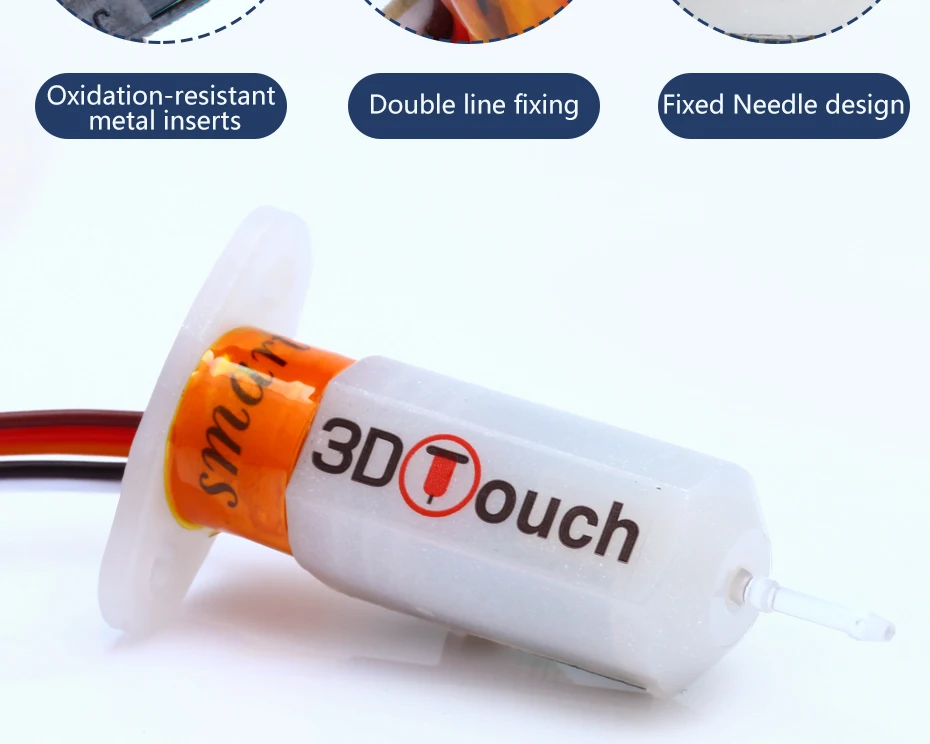

Upgrade designWe have upgraded the design of the sensing cable, needle for 3D Touch.Oxidation-resistant metal insers,Double lin fixing,fixed needle designThe main functions and controls of 3D printer touch are the same as most auto bed leveling sensors, which consists of a RC servo and a micro switch,thus,3D printer touch can be used on almost every 3D printer control board.
By using progressively designed solenoid and hall sensor,It can integrate high precision in such a simple structure.To make it more user-friendly and to bring you more enjoyable printing experience we add many smart functions such as self-test,false alarm,alarm release and test mode for M119.

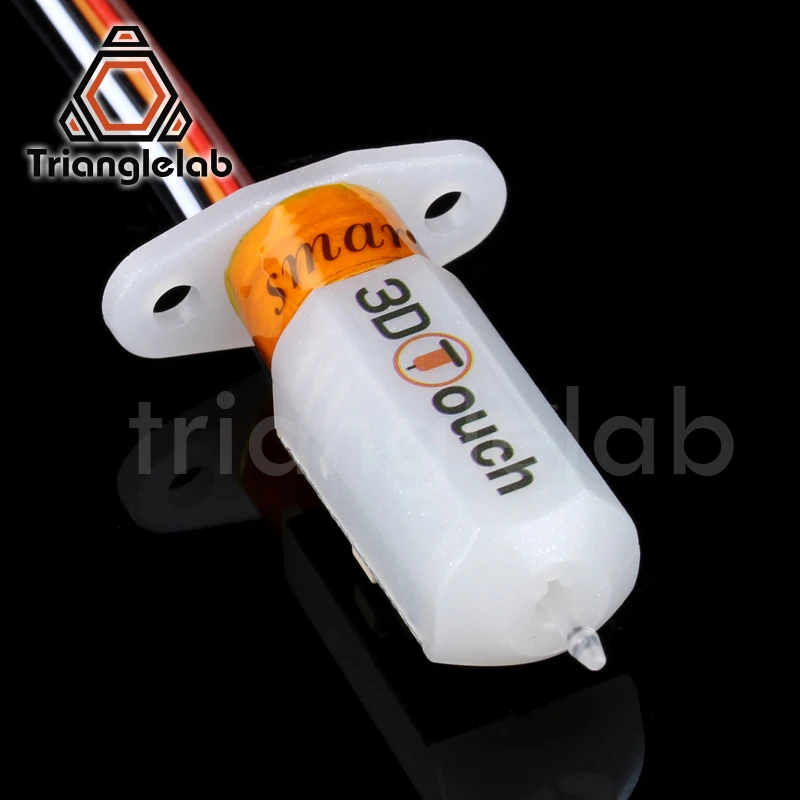

Pulling/pushing hard on the push-pin can damage Touch sensorand make it less accurate.Fix push-pin with locking paint after reassembling or adjusting core.Do not remove or deform elastic material attached on the push-pin.

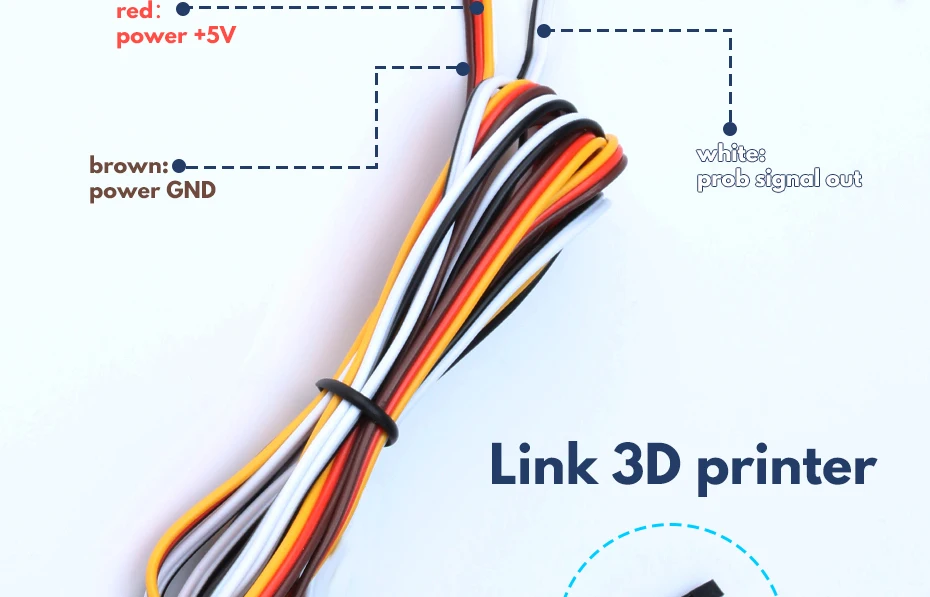

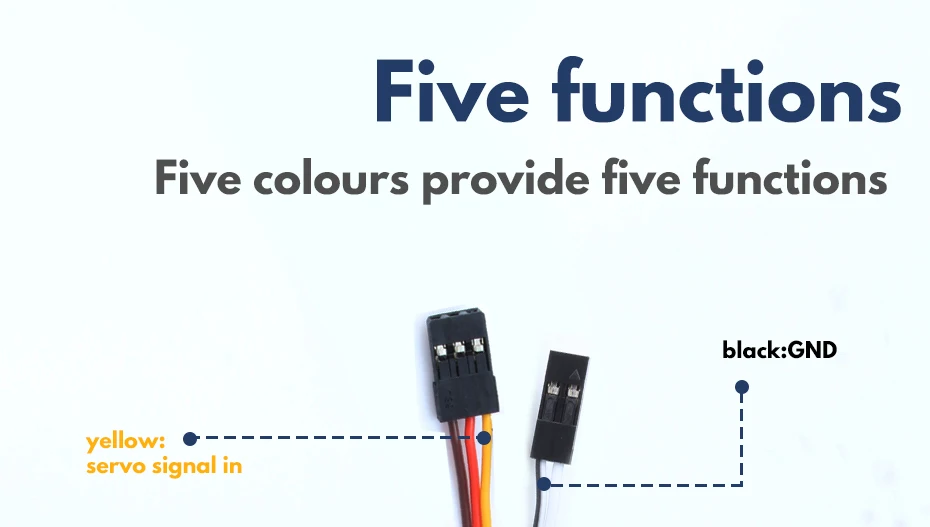

Five functionswhite prob signal outblack GNDyellow servo signal inred power +5Vbrown power GND
The 3D touch is able to work with many different extruders because of its physical contact sensing response.The picture below shows the DDE-S extruder from Triangle Experiment working with sensitive sensing.If you want buy this DDE-S Extruder ,Please click here.

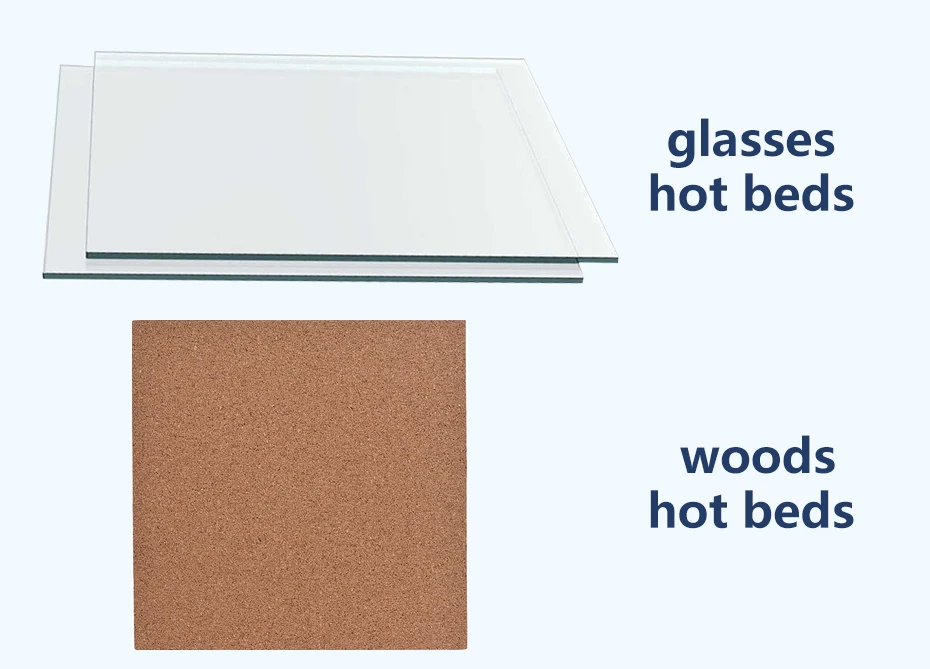

Physical contact Suitable for many different hot bedsFeatures simple,smart and precise.It could work with nearly any kind of bed materials,such as glasses, woods,metals and so on.

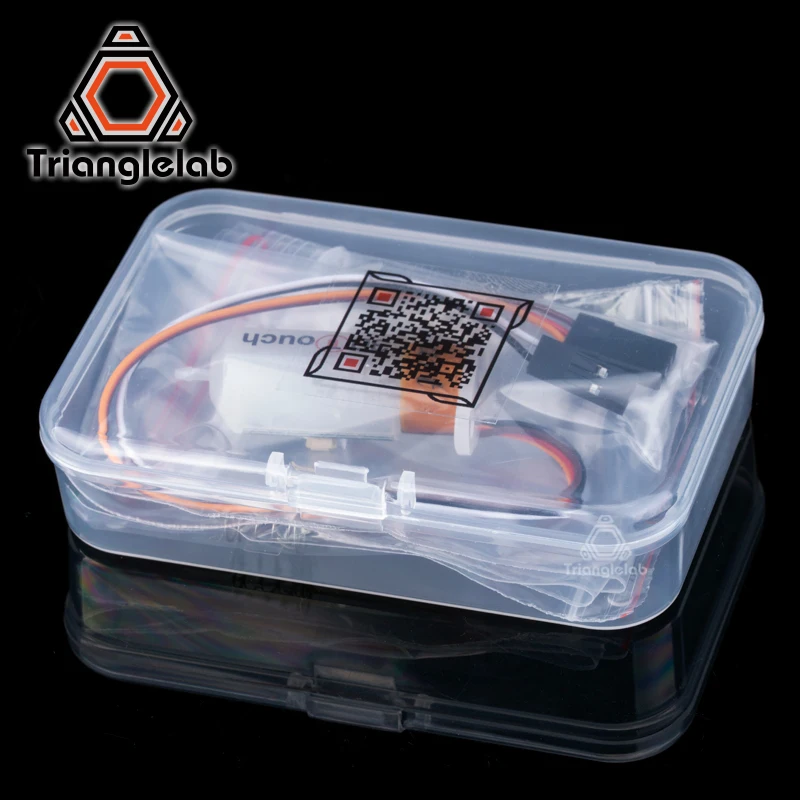

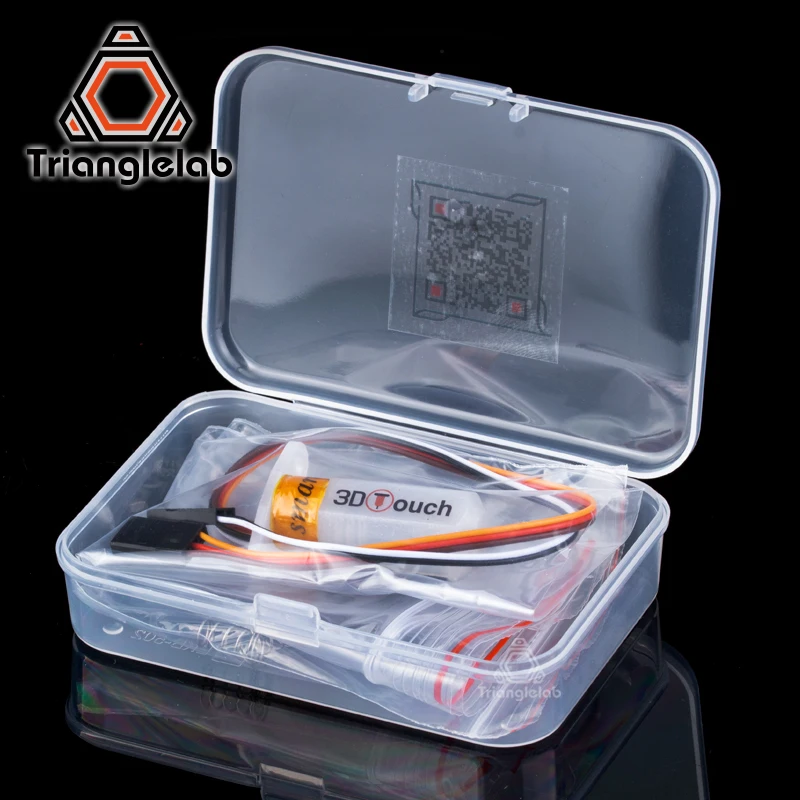

1 X 5Pin Straight Pin2 X Screw & Nut & Washer1 X 80CM Extension wires
•Payment MethodIf you have any trouble with payment,please contact us. •Quality Warranty1.Please contact us if you have any problem of quality.2.90 Days of quality warranty.•FeedbackFeedback is very important for us.We appreciate your positive feedback if you are statisfy with our products and service.Please contact us before leaving any negative or neutral feedback.We will solve any problem in 24hous.
Comparison of prints before and after the upgrade
