10pcs 2pin Pluggable Wire Connector Quick Splice Electrical Cable Crimp Terminals for Wires Wiring 22-20AWG LED Car Connectors

Connectors & Terminals>>>Home Improvement

Certification CE

Certification RoHS

Origin CN(Origin)

Type Splice

is_customized Yes

Model Number PWJD2T

Alias Name Pluggable Wire Splicer

Working Voltage <36V

Working Current Max 9A

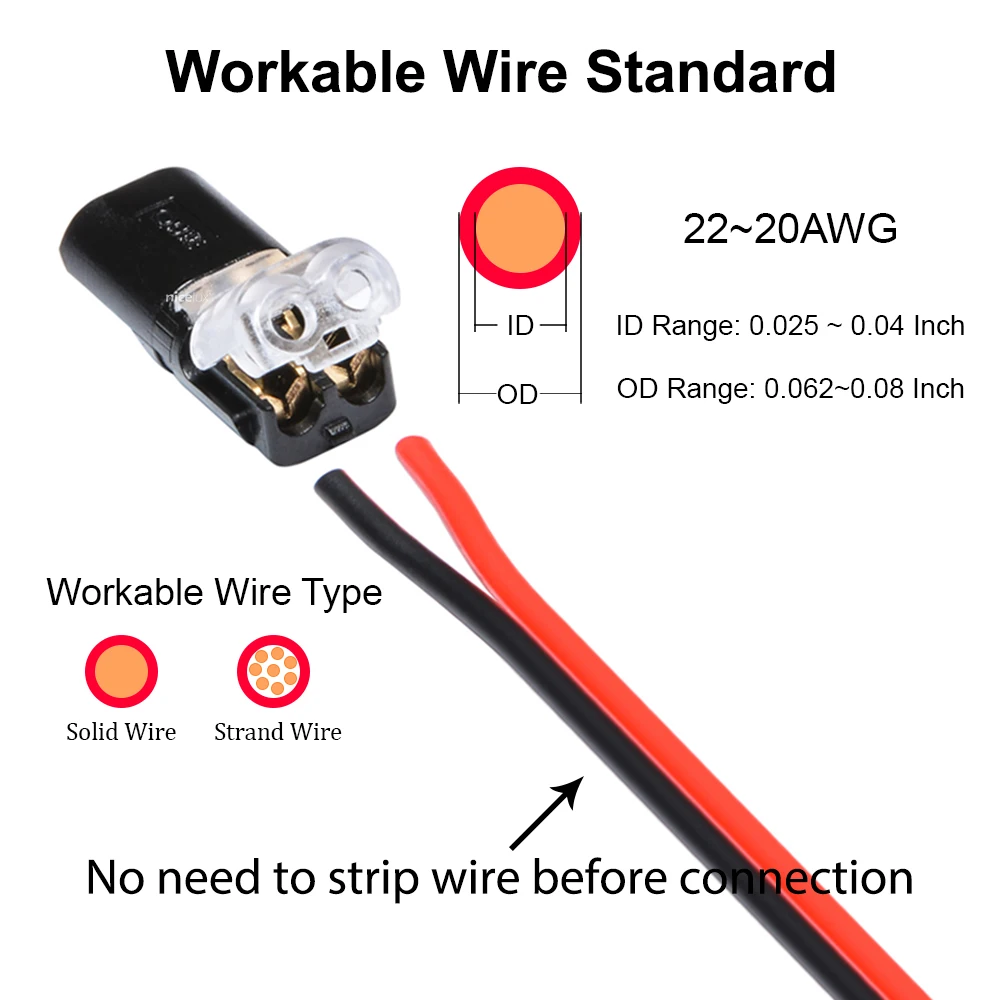

Workable Wire Type Flexible and Rigid / Strand and Solid

Workable Wire Gauge (Cross Section) 0.34~0.54 mm2 (22~20AWG)

Ingress Protection Rating IP40

Flame Retardant Rating UL94v-0 (highest level)

Certificate CE & RoHS

Material PC & Copper

Color (cap/base) Transparent / Black

Pluggable Wire Connector 2 Pin for Quick Splice, Non-stripped crimp terminal for 0.34~0.54 / 22~20AWG Wire 12~36V,9A,CE and RoHS

 DIY connector  with wire as you want

 Be able to unplug after connection

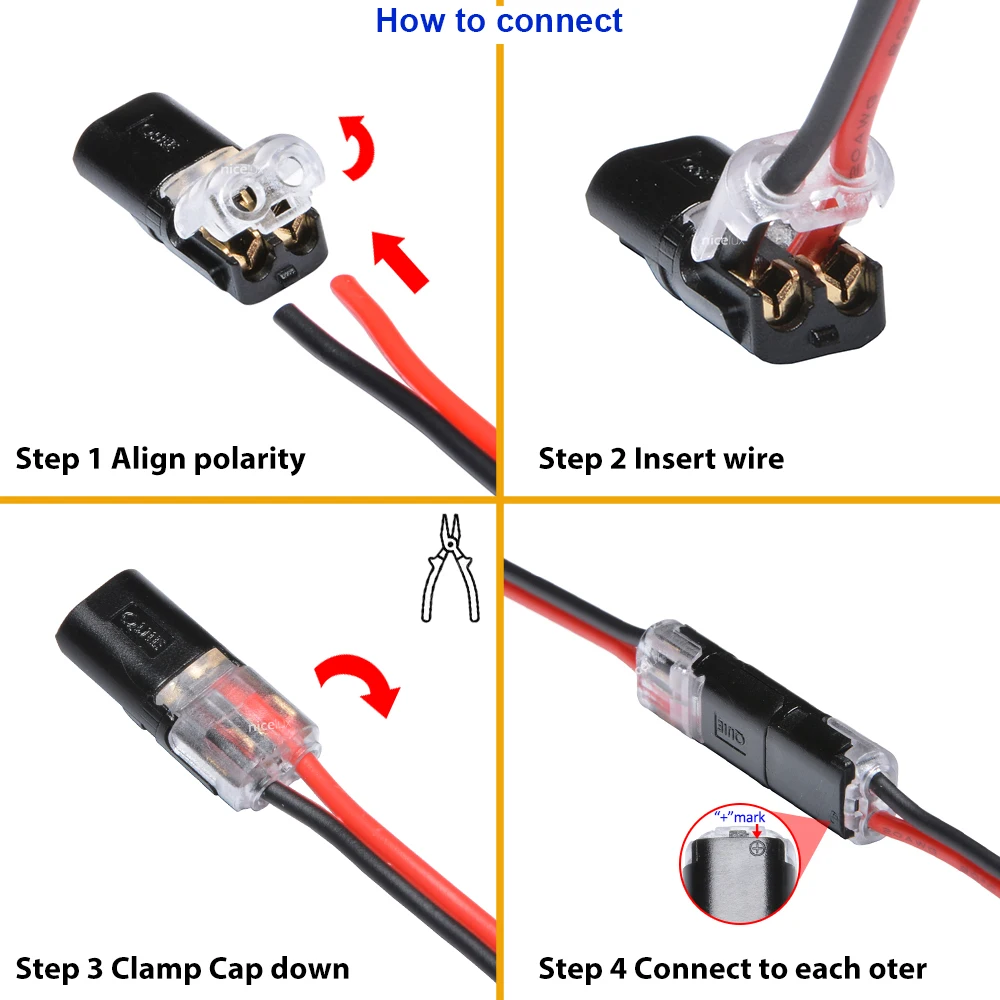

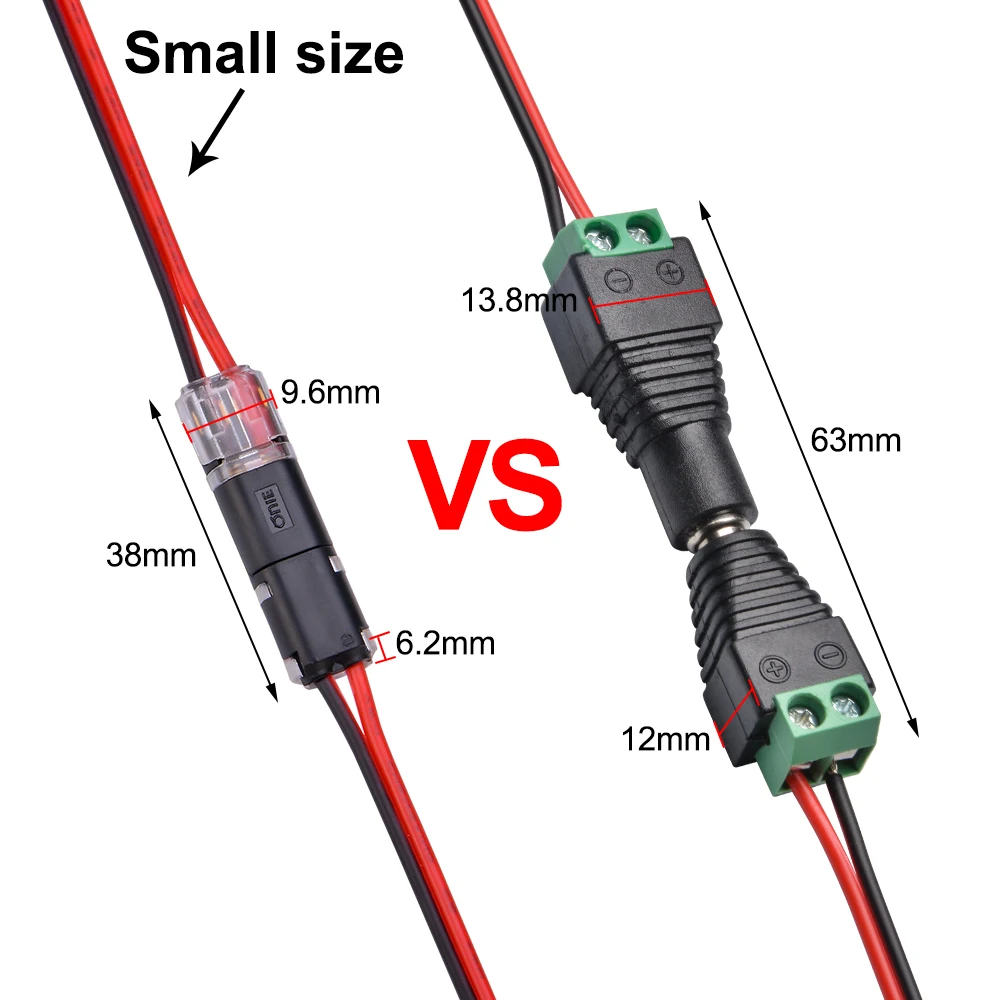

 Electrical Professionals' View " This wire terminal connector allow user to easily DIY a pair of connector for their electrical equipments. All the tools you need to assemble this terminal connector to wire is a pliers, no stripper nor electrical tape needed. It is the most flexible solution of electrical wire connection which free user from length limit of pre-fixed-wire connector like DC connector, pin connector or JST style connector, etc. With the help of this terminal wire connector , users can focus on arranging positioin of electrical equipment instead of including wire length into their project consideration. Further more,the plugable design allow user to disconnect power during mantenance or replacement of equipment.  " Extend Wire As You Want  Very EASY TO USE

 Widly Applicable

Note: 1 Inch=25.4 mm; 22~20AWG = 0.34~0.54 mm2 Positive Mark

Related Products Package Include

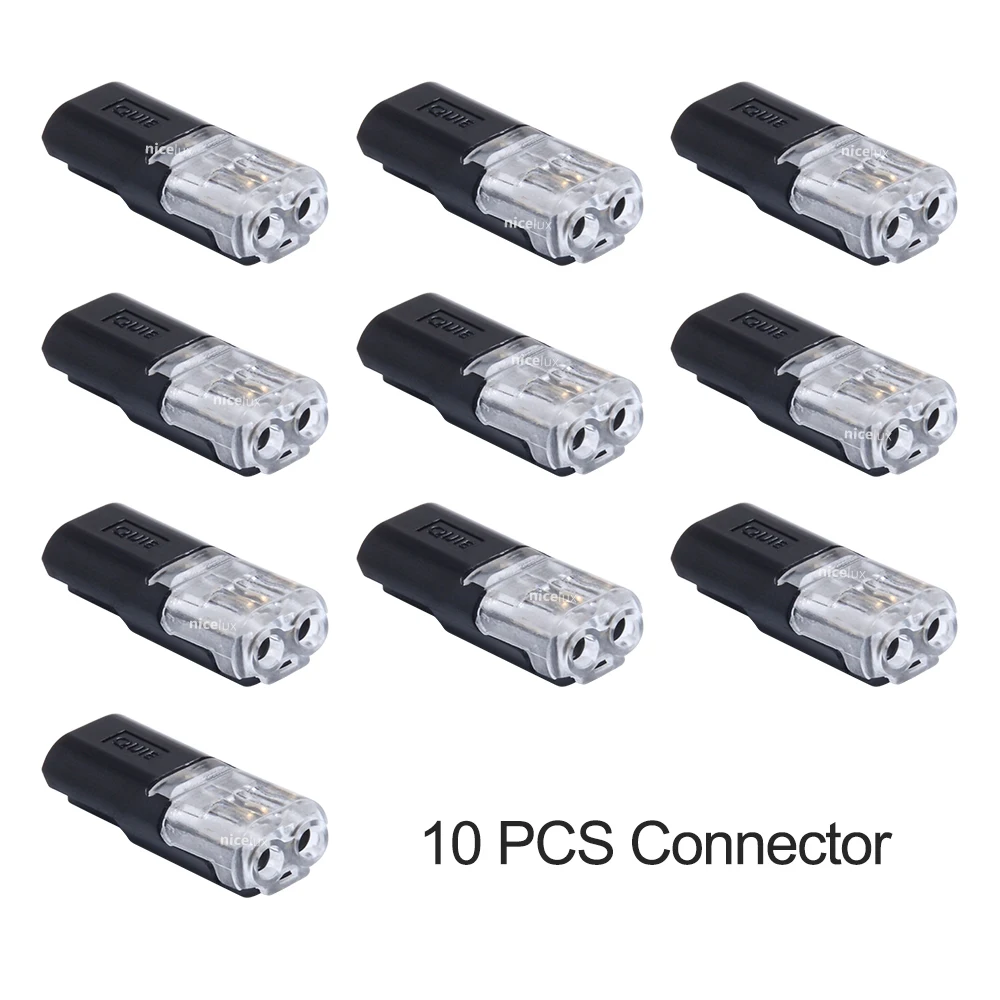

10x Cable Terminal Connector

1x User Manual

 Questions & Answers

Q: Can this connector terminal be used to connect teflon wire?

A: Yes, it is workable

Q: Does it work with silicon insulation wire?

A: No, Silicon insulation is too soft,  so the pressure to the blade is not enough for cutting insulation through, thus the blade(pin) can not contact the wire conductor inside.

Q: Which is male and female ?

A:male and female is same to this connector. Each one can connect to each other

Q: What is the IP rated level ?

A: This connector is IP20 which is non-waterproof.
